RAS machines for: Covers and housings

When quantity 1 becomes the rule

The von Arb AG SAS produces sound proof enclosures. In addition, the company has established itself as a highly flexible job shop. Even special orders can usually be provided with same day delivery. “If you want to produce single customized parts, you have to consider machines that can handle Step files and automatically program the component,” says Roman von Arb and adds: “For small production batches, alternating bending directions, large formats and heavy parts the UpDownCenter is unbeatable.”
www.vonarb-ag.ch

Technology follows design

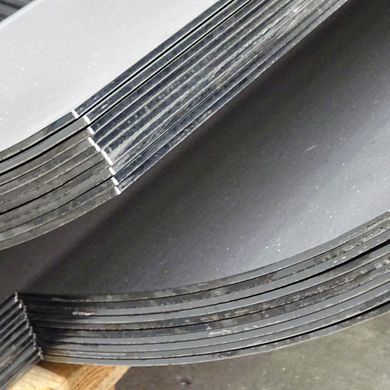

The Roessler GmbH from Mertendorf in Germany is a job shop that specializes in enclosures of machine tools. The variety of housings and small batch quantities requires high production flexibility and a high level of vertical integration. When Roessler’s customers changed their product to a design with large radii, the previous production with press brakes reached its limits. Today, a RAS UpDownCenter folding system bends the radii automatically.
www.roessler-gmbh.com

Bending of a belt guard

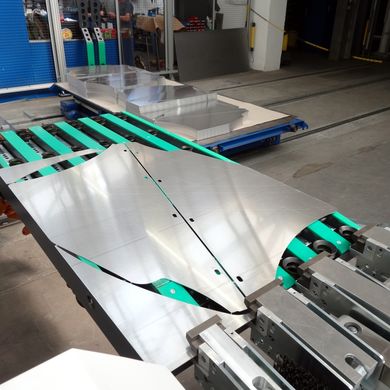

The RAS Multibend Center at the job shop Omega Blechbearbeitung AG bends machine covers and metal furniture, among other metal components. The video shows how the machine bends a belt guard for an agricultural vehicle. An intelligent loading robot loads the panel bending center with punched or laser cut blanks.
www.omega-blech.de

Tool boxes made of treadplates

The RAS Multibend Center panel bender folds aluminum treadplates and creates tool boxes, as they are often used on pickup trucks. Due to the unique 3D bending technology the treadplate material surface will not be scratched during bending.

MiniBendCenter bends case components

This video shows how the small parts bending center RAS MiniBendCenter bends a series of case components. The tool changer sets up the machine for the individual jobs and the manipulator positions and rotates the parts for each bend. The intelligent loading robot – no need to teach or program the robot – feeds the blanks from pallets with stacks of different blanks.

  • Kaschwig: Schallschutzkabinen
  • UpDownCenter: Verkleidung mit Radien
  • Multibend Center: Stauraumboxen Riffelblech
  • Multibend-Center: Riemenschutz
  • UpDownCenter: Schallschutz-Einhausungen
  • UpDownBend: Komplexes Biegeteil
Bending length max
3060 mm
Thickness max
2.00mm/14 ga
Programming
automatic
Automation
high
Bending direction
up and down
Parts
Profiles and boxes
Bending length max
2560 mm
Thickness max
2.0 mm (2.5 mm) / 14 ga (13 ga)
Programming
automatic
Automation
high
Bending direction
up and down
Parts
Profiles and boxes
Bending length max
4060 mm
Thickness max
3.0 mm / 11 ga
Programming
automatic
Automation
high
Bending direction
up and down
Parts
Profiles and boxes
Bending length max
3200 mm
Thickness max
4.0 mm / 9 ga
Programming
automatic
Automation
high
Bending direction
up and down
Parts
Profiles and boxes
Bending length max
4060 mm
Thickness max
2.5 mm / 13 ga
Programming
automatic
Automation
high
Bending direction
up and down
Parts
Profiles and boxes
Bending length max
3200 mm
Thickness max
3.0 mm / 11 ga
Programming
automatic
Automation
high
Bending direction
up and down
Parts
Profiles and boxes
Bending length max
4060 mm
Thickness max
5.0 mm / 6 ga
Programming
mostly automatic
Automation
medium
Bending direction
up
Parts
Profiles and boxes
Bending length max
3200 mm
Thickness max
6.0 mm / 1/4"
Programming
mostly automatic
Automation
medium
Bending direction
up
Parts
Profiles and boxes
Bending length max
4060 mm
Thickness max
2.5 mm / 13 ga
Programming
mostly automatic
Automation
medium
Bending direction
up
Parts
Profiles and boxes
Bending length max
3200 mm
Thickness max
3.0 mm / 11 ga
Programming
mostly automatic
Automation
medium
Bending direction
up
Parts
Profiles and boxes
