RAS machines for: Electrical and other cabinets

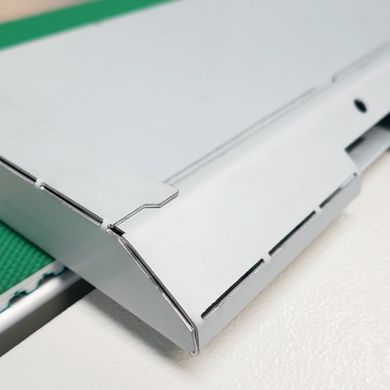

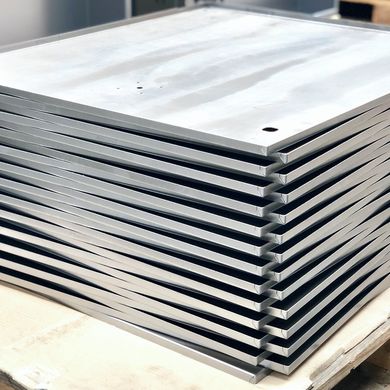

Panel Bending Machine for Server Cabinet Door with a Large Window Opening

RAS Multibend-Center panel bending machine bends server cabinet doors with a large window opening. The main manipulator picks up on the blank off-center and changes it position during the bending sequence. The closed profiles provide high rigidity at the edge of the folded cabinet door.

Panel Bending Machine for Cabinet Housings and Doors with Speed and Perfection

RAS Multibend-Center panel bending machine proves its speed and perfection not only for small batches, but also for medium and large lot sizes. Enthusiastic customers praise the high speed, which is a factor of 4-5 compared to traditional bending processes on press brakes. At the same time, the automatic bending center folds the cabinet housings and doors with such precision and repeatability that the components are ideal for downstream laser welding.

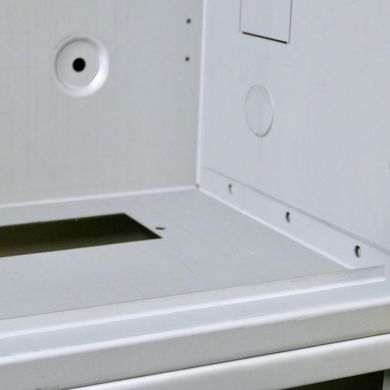

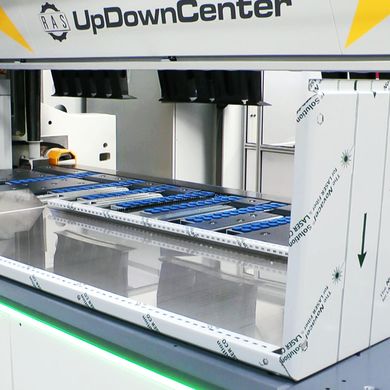

Panel Bending Machine for Electrical Cabinet Panel With L-Flange

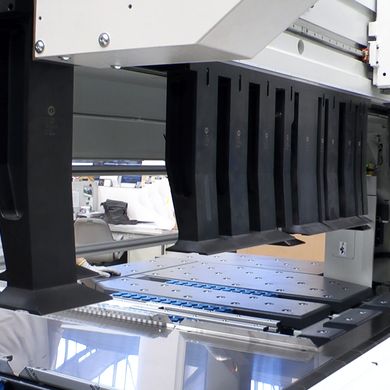

RAS UpDownCenter panel bending machine bends the side wall of an electrical cabinet with a long L-flange. The Bendex software automatically programs the part setup with a STEP file. The tool change sets up the tool and repositions them during the bending cycle. The suction cup gauging system positions the part for each bend. Even a repositioning during the bending sequence is carried out automatically. The UpDownTools collapse automatically or move upwards if the part has an interrupted bend line. The result are perfect parts that are bent without physical effort for the operator. Fast programming – fast setup – fast bending – perfect parts.

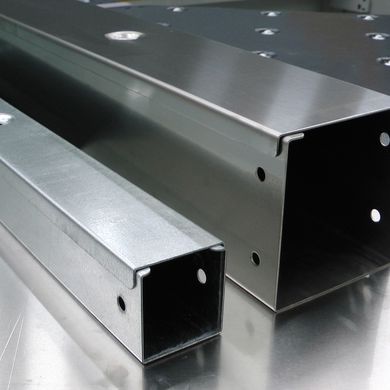

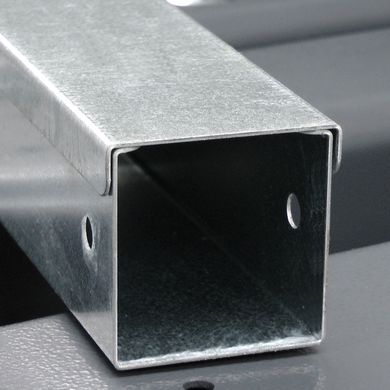

Cable Duct with Snap-On Cover Bent on RAS Panel Bending Machine

This image shows an example of a cable duct with its filigree delicateness of shaping. The snap-on base and cover design, allows to open the cable duct
without tools for changing cables and wires. The bottom part and the click-on cover are bent on the RAS Multibend-Center panel bending machine.

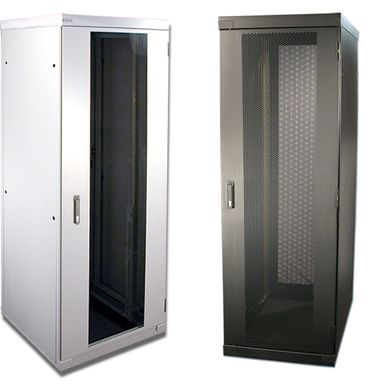

Bending Server Racks with RAS Panel Bending Machine

MFB Products from Melbourne, Australia are a leading producer of 19” rack mount enclosures and custom sheet metal components. They installed a RAS Multibend-Center 20 years ago providing the ability to enhance its products strength through smart folding techniques never before possible. As the company has grown, their need for an additional RAS Multibend-Center was
evident. So RAS2 is now installed. Using the Bendex Office software, which programs the sheet metal components automatically, they were able to improve their productivity even further.

Panel Bending Machine for Bending Deep Electrical Cabinets

Alphatec Schaltschranksysteme GmbH produces cabinets for the electrical industry. These include meter cabinets, media columns, and converter cabinets, e.g. for photovoltaic systems. About 35 percent are custom-made cabinets in small batches. For bending Alphatec uses a RAS UpDownCenter bending center. This panel bending machine bends the blanks up and down, automatically creates the part programs and sets up the tools with an automatic tool changer.

Panel Bending Machine for Bending Switchgear Cabinets

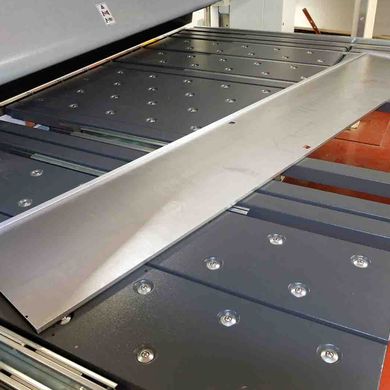

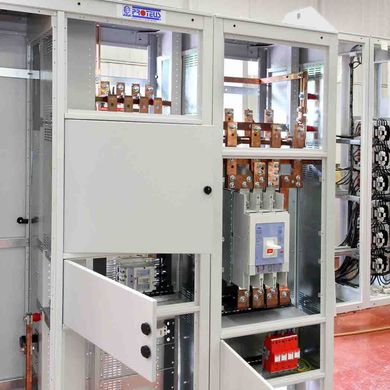

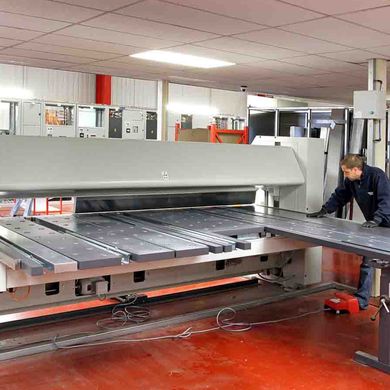

At the Telford factory of Proteus Switchgear, throughput of bent sheet metal components is just as high using a FLEXIbend folding machine as it was when the company was using a fully automated panel bender. Proteus’ folding machine does not bend faster, but the change over from one job to another is
much faster and more flexible. In addition, the FLEXIbend also can bend smaller switchgear components in small to medium batches. Typical runs are from 10 to 20 and occasionally up to 50-off.

Panel Bending Machine Bends Small Parts for Server Rack

The company Triton from Pardubice in the Czech Republic is a manufacturer of data cabinets, power distribution systems, and wardrobe lockers. Customers can design their own cabinets using the Triton product configurator. As a result, production and machine flexibility need to be extremely high. The RAS MiniBendCenter bends small parts up to 600 x 600 mm in small to medium batch sizes. An optical scanner automatically finds the blanks on the pallet. Fed with this data, a robot loads the small-part into the bending center. After the automatic bending process is completed, the finished parts can be automatically delivered to different boxes. After one job is completed the tool changer automatically prepares the machine for the next job.

Bending Outdoor Distribution Cabinets Using RAS Panel Bending Machine

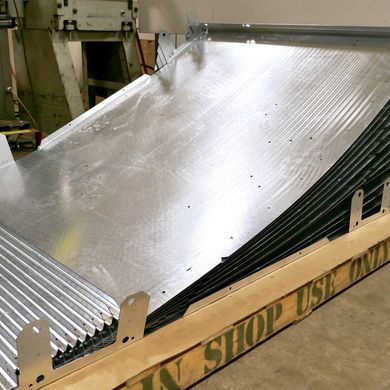

RAS 79.31-2 Multibend-Center at Eaton Cooper for example bends tops of outdoor distribution cabinets. The cross bends in the control cabinet top cover increase rigidity and ensure controlled water drainage. Due to the long runout with tilting tables, the bending cell can supply two different assembly lines with bent parts.

Manufacturing Telecom Security Cabinets Using RAS Panel Bending Machine

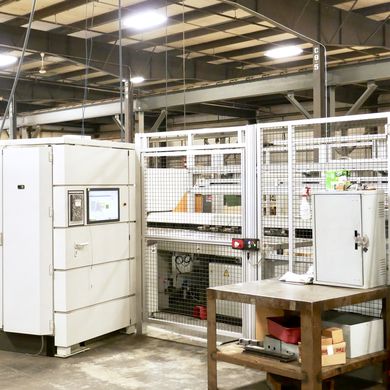

American company Diversified Control is a manufacturer of security cabinets for the telecommunications industry. Owner Brent James says: “We’ve thought a lot about high-security electrical cabinets and claimed more than 40 patents over the past 25 years. Our range of weather-resistant metal enclosures exceeds all environmental testing specifications for the telecommunications industry.” Diversified Control bends all large panels for wireless or wireline enclosures on a RAS Multibend-Center panel bending machine with automatic blank loading. Case Study: Forming Electrical Enclosures for Telecommunications Industry.

Panel Bending Machine for Bending Containers and Waste Bins

Containers, waste bins, storage, and disposal boxes are usually designed from large sheet metal parts with complex positive and negative bends. RAS Multibend-Center panel bending machine is ideally suited for bending small batches of parts in large varieties.

Panel Bending Machine for Server Cabinets with Grounding Bolt

Server cabinets require a welded-on bolt for grounding the cabinet electrically. The RAS Multibend-Center at Triton in the Czech Republic integrates automatic bending with stud welding. After the panel bending machine has folded a part, a bolt is automatically welded onto the part surface before an intelligent unloading robot automatically stacks the sheet metal part.

Bending Electrical Cabinets Using RAS Panel Bending Machine

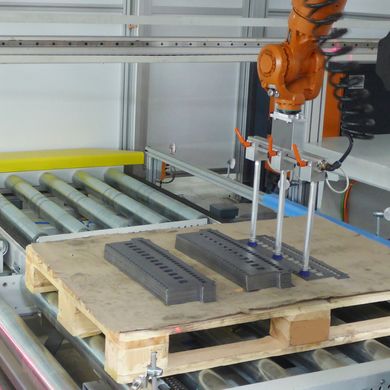

The video shows fully automatic bending of control cabinets, power distributors, and mounting plates on the RAS Multibend Center panel bending machine. An intelligent loading robot delivers blanks to the bending center. The loading robot calculates its own movements, so there is no need for teaching or programming the robot and thus making the system suitable for smallest production batch sizes.

Panel Bending Machine for Bending Top of a Multi-Sided Server Cabinet

The RAS Multibend Center panel bending machine offers maximum part design flexibility. Even with multi-sided parts of server cabinets, the bending center is far from reaching its limits. The UpDownTools create space so that protruding flanges will be bent at the right time.

RAS Panel Bending Machine Bends Electrical Industry Parts

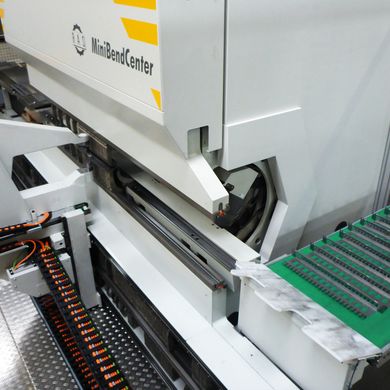

Complex components from the electrical industry are a challenge for the small parts panel bending machine RAS MiniBendCenter. After the tool changer has completed the tool setup, the manipulator positions and rotates the parts for each bend. The intelligent loading robot – no need to teach or program the robot – feeds the blanks from pallets with stacks of different blanks.

Bending Electrical Cabinet Components Using RAS Panel Bending Machine

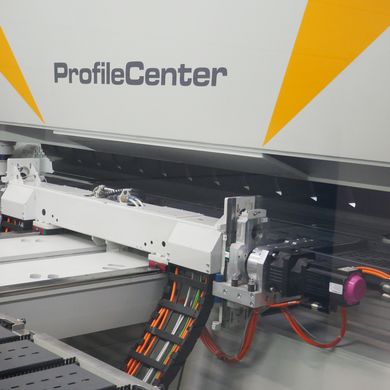

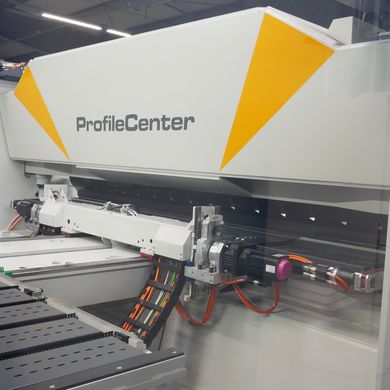

This video shows the RAS ProfileCenter panel bending machine as it bends profiles that will be installed in control cabinets for mounting accessories and shelves. The high straightness requirements and the variety of different geometries and part lengths make perfect use of the ProfileCenters flexibility. The Bendex software programs the profiles automatically starting from STEP files of the sheet metal parts.

Panel Bending Machine Used for Folding Distribution Cabinets

The Multibend-Center panel bending machine folds distribution cabinets for heating and cooling systems. With the unique UpDownTools, offset tabs can be bend. Automatic tool changes within the bending sequence enable the machine, bending special part geometries.

Bending Cable Ducts with RAS Panel Bending Machin

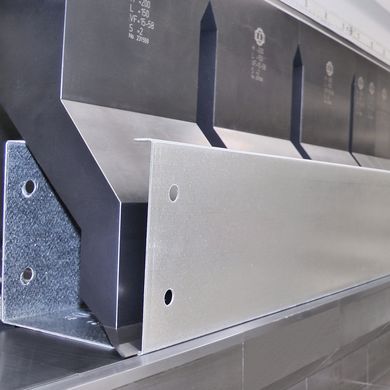

The folding beam of the UpDownBend panel bending machine has no crown. Therefore, it is possible to move the folding beam to 90 degrees and use it as a stop in this position. Using this method also very small parts can be produced,
such as narrow cable ducts. If in addition the blanks come with formings and embosses, the machine can handle this situation with special tools.

RAS Panel Bending Machine Bends Cabinets for Fire Hoses and Fire Extinguishers

Cabinets for fire hoses and fire extinguishers made of a single blank and bent on all four-sides can be very deep. The UpDownCenter panel bending machine at EACI in Spain therefore is equipped with 300 mm high tools, which allow deep boxes and on the other hand meet the sheet thickness requirements. The Bendex software programs the parts fully automatically and with highest levels of precision.

Panel Bending Machine Used for Bending 400 mm Deep Electrical Cabinet

The video shows how the RAS UpDownCenter panel bending machine bends a 400 mm deep stainless-steel electrical cabinet. The unique Bendex software has programmed the enclosure automatically starting from a STEP file, including the tool setup. The tool changer sets up the tools and the UpDown folding center bends all four sides of the cabinet. A stop system with suction plates positions the control cabinet for each bend.

Bending Electrical Enclosures and Server Racks with RAS Panel Bending Machine

CAM srl is located at the charming Lake Iseo in Italy. Owner Claudio Turelli says, they are using the RAS UpDownCenter panel bending machine mainly for the
production of electrical enclosures, server racks and metal cabinets, but also for many other mild steel and stainless steel components.
